1         FIPA Query Interaction Protocol

The FIPA Query Interaction Protocol (IP) allows one agent to request to perform some kind of action on another agent.



The representation of this IP is given in Figure 1 which is based on extensions to UML1.x [Odell2001]. This protocol is identified by the token fipa-query as the value of the protocol parameter of the ACL message.

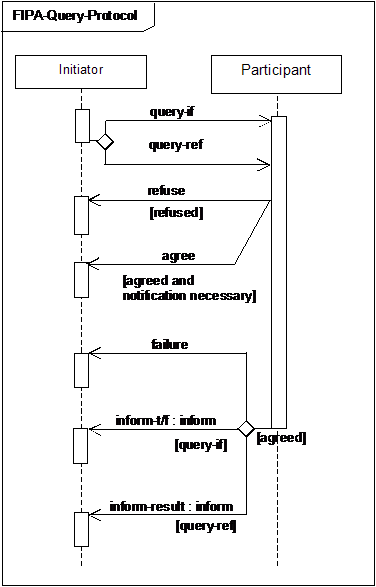

Figure 1: FIPA Query Interaction Protocol



1.1        Explanation of the Protocol Flow

The Initiator requests the Participant to perform some kind of inform action using one of two query communicative acts, query-if or query-ref (see [FIPA00037]). The query-if communication is used when the Initiator wants to query whether a particular proposition is true or false and the query-ref communication is used when the Initiator wants to query for some identified objects. The Participant processes the query-if or query-ref and makes a decision whether to accept or refuse the query request. If the Participant makes a refuse decision, then “refused” becomes true and the Participant communicates a refuse. Otherwise, “agreed” becomes true.



If conditions indicate that an explicit agreement is required (that is, “notification necessary” is true), then the Participant communicates an agree. The agree may be optional depending on circumstances, for example, if the requested action is very quick and can happen before a time specified in the reply-by parameter. If the Participant fails, then it communicates a failure.



In a successful response, the Participant replies with one of two versions of inform:



·         The Participant uses an inform-t/f communication in response to a query-if where the content of the inform-t/f asserts the truth or falsehood of the proposition, or,



·         The Participant returns an inform-result communication in response to a query-ref and the content of the inform-result contains a referring expression to the objects for which the query was specified.



Any interaction using this interaction protocol is identified by a globally unique, non-null conversation-id parameter, assigned by the Initiator. The agents involved in the interaction must tag all of its ACL messages with this conversation identifier. This enables each agent to manage its communication strategies and activities, for example, it allows an agent to identify individual conversations and to reason across historical records of conversations.



1.2        Exceptions to Interaction Protocol Flow

At any point in the IP, the receiver of a communication can inform the sender that it did not understand what was communicated. This is accomplished by returning a not-understood message. As such, Figure 1 does not depict a not-understood communication as it can occur at any point in the IP. The communication of a not-understood within an interaction protocol may terminate the entire IP and termination of the interaction may imply that any commitments made during the interaction are null and void.



At any point in the IP, the initiator of the IP may cancel the interaction protocol by initiating the meta-protocol shown in Figure 2. The conversation-id parameter of the cancel interaction is identical to the conversation-id parameter of the interaction that the Initiator intends to cancel. The semantics of cancel should roughly be interpreted as meaning that the initiator is no longer interested in continuing the interaction and that it should be terminated in a manner acceptable to both the Initiator and the Participant. The Participant either informs the Initiator that the interaction is done using an inform-done or indicates the failure of the cancellation using a failure.

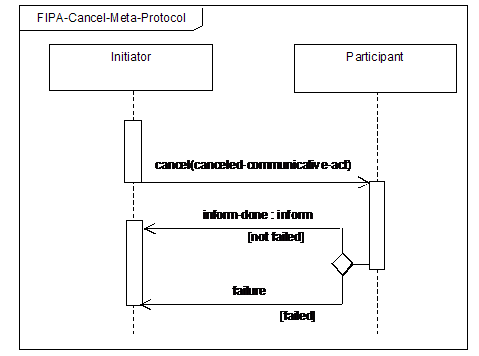

Figure 2: FIPA Cancel Meta-Protocol



This IP is a pattern for a simple interaction type. Elaboration on this pattern will almost certainly be necessary in order to specify all cases that might occur in an actual agent interaction. Real world issues such as the effects of cancelling actions, asynchrony, abnormal or unexpected IP termination, nested IPs, and the like, are explicitly not addressed here.
